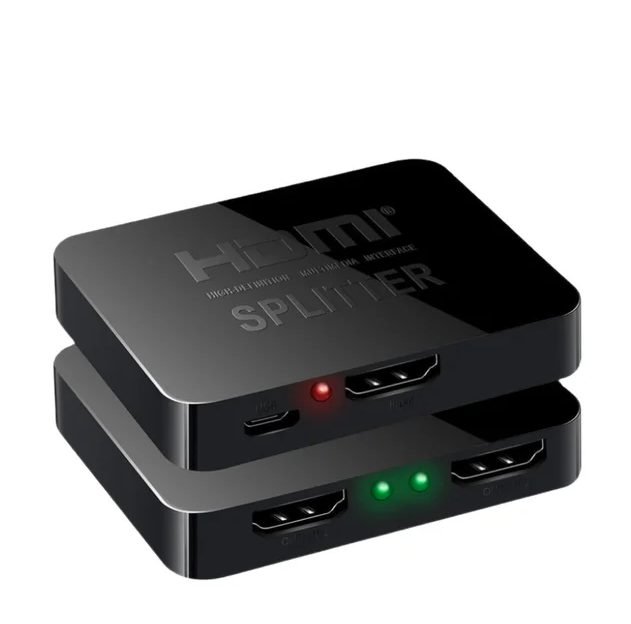

Introduction: HDMI Splitter 1 into 2 out, so that an HDMI port to allocate two HDMI ports high-definition audio and video distributor. Allows for distribution of set-top boxes, DVD players, D-VHS players and other HDTV devices with HDMI signals in a two-way, simultaneous, HDMI output. Users can output a single signal can also be connected to high-definition projectors, DLP, LCD high-definition television and other audio equipment.

Green, passive work Using the latest energy-saving technologies, the minimum power is only 1W, easily obtainable from the HDMI device, and now we can say goodbye to the power supply, more environmentally friendly and more stable. Full support for HDMI 1080P 3D and so on Can display vertical pixels up to 1080 lines 3D HD output. Support Blu-ray, PS3 and other multimedia HDMI 3D output device. Let wonderful 3D world at your fingertips. Standard HDMI specification, HDCP compliant Support all HDMI standard features, including Full HD 1080p, color depth, lip sync, CEC. The system It also supports all high-resolution multichannel audio formats including Dolby Digital Plus, 7.1 LPCM, Dolby TrueHD, and DTS Master Audio

Parameter: Support HDMI version: HDMI1.3 Support HDCP version: HDCP1.2 HDMI Resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60 Hz, 1080i @ 50/60 Hz, 1080p @ 50/60 Hz, 1080P 24Hz 3D, 720 60Hz 3D Support video color format: 24 / dark 30 / dark 36 Support audio formats: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD The maximum transmission rate: 10.2Gbps Audio signal transmission format: left and right stereo audio Input and output TMDS signal: 0.5 ~ 1.5Vp-p (TMDS) Input and output DDC signal: 5Vp-p (TTL) Input cable length: ≤5m (AWG26 HDMI1.3 cable standard) Output cable length: ≤5m (AWG26 HDMI1.3 cable standard) Size (length × width × height): 75mm × 56mm × 15mm Material: ABS Colour: Black

Package include: 1pcs  Hdmi Splitter 1pcs USB Cable
